Annexes

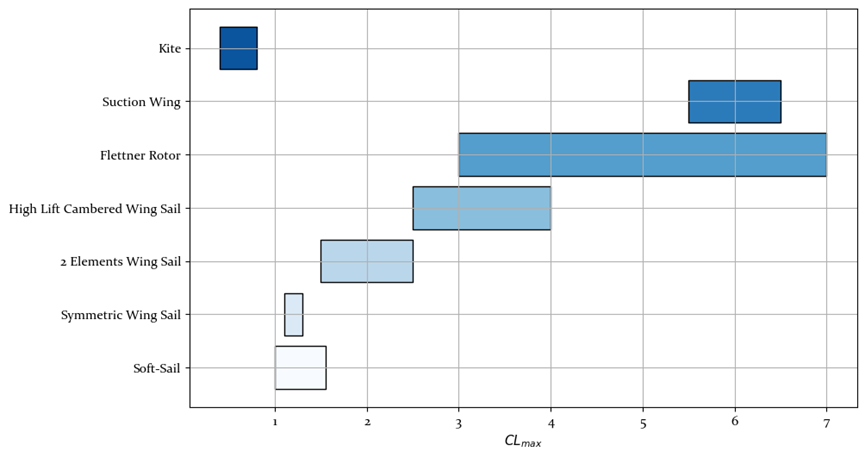

C_L range per technology

Note that:

• C_L range for kite and rotor is operating C_L

• C_L range for other technologies is the available range of C_Lmax

Parameter range and default values

Soft sail

Parameter	Range	Default value
Clmax	[1.00 , 1.55]	1.40
Device area	[400 , 2000]	800
Device span		50
Number of devices	[1 , 6]	1

Symmetric Wing Sail

Parameter	Range	Default value
Clmax	[1.00 , 1.30]	1.20
Device area	[200 , 1000]	400
Device span		40
Number of devices	[1 , 6]	1

Two Element Wing Sail

Parameter	Range	Default value
Clmax	[1.30 , 2.50]	1.90
Device area	[200 , 1000]	400
Device span		40
Number of devices	[1 , 6]	1

High Lift Cambered Wing Sail

Parameter	Range	Default value
Clmax	[2.50 , 4.00]	2.80
Device area	[100 , 500]	300
Device span		30
Number of devices	[1 , 6]	1

Flettner Rotor

Parameter	Range	Default value
Clmax	Fixed value	7.00
Device diameter	[3 , 7]	5
Device span		30
Number of devices	[1 , 6]	1

Suction Wing

Parameter	Range	Default value
Clmax	[5.50 , 6.50]	6.35
Device area	[50 , 300]	150
Device span		30
Number of devices	[1 , 6]	1

Dynamic Kite

Parameter	Range	Default value
Clmax	[0.4 , 0.8]	0.6
Lift to drag ratio	[4 , 7]	5
Device area	[200 , 1500]	400
Elevation	[35° , 65°]	45°
Number of devices	Fixed value	1
